2 Story Prefabricated Container Home
- Product Detail
-

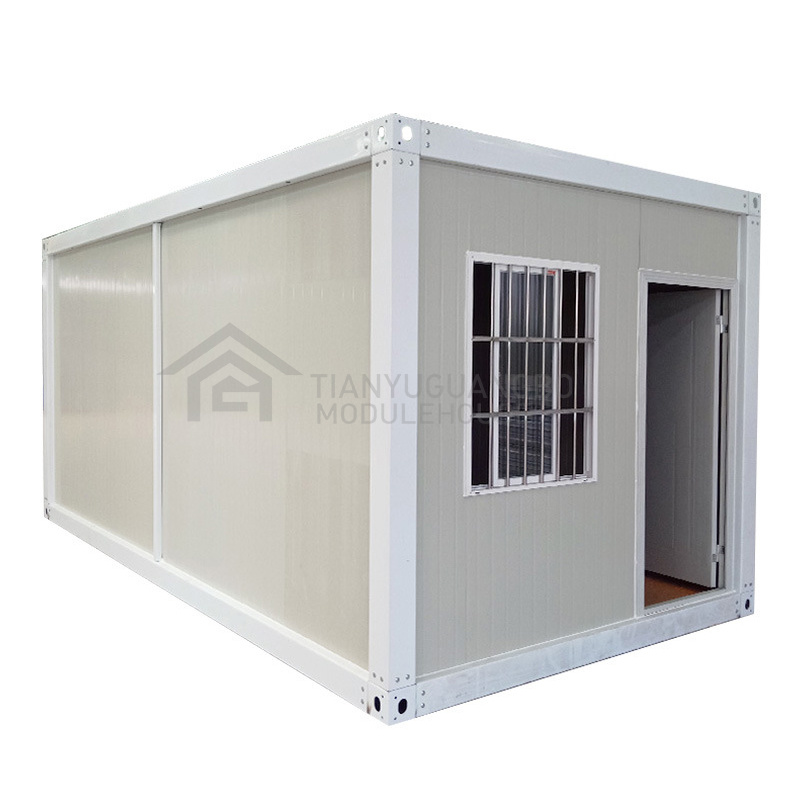

Flat Pack Container House
The Flat Pack Container House is composed of top frame components, bottom frame components, corner columns and several interchangeable wallboards. Modular design concept and production technology are adopted to modularize a box house into standard parts, which can be assembled or hoisted on site at the site. The product takes the box as the basic unit, the box structure adopts special cold-formed galvanized steel components, the enclosure and thermal insulation materials are all made of non combustible materials, and the plumbing, electrical, decoration and supporting functions are all prefabricated in the project without secondary construction. Now you can move in after assembly or overall hoisting. It can be used alone, or spacious use space and lamination can be formed through different combinations of horizontal and vertical directions.
The packed box house has simple and safe structure and low requirements for foundation. It has the characteristics of fast installation, convenient movement and relocation, many turnover times and long service life. The modified products are disassembled without loss and construction waste. It can be used as a large space for office, accommodation, restaurant, bathroom, entertainment and combination, and can meet the requirements of construction engineering camp, municipal temporary house, field operation camp The demand for emergency resettlement houses, schools, hospitals, tourist stations and various commercial houses.
Product parameters:
Standard house size 5800mm*2400mm*2896mm index Insulation 0.043W/m.K Wind resistance 0.50kN/㎡ sound insulation ≥30dB Fire performance Level A waterproof Level 2 Seismic performance Level 8 Ground live load 2.0kN/㎡ Roof live load 0.5kN/㎡ Main structure main section bar The thickness of galvanized ground frame beam is 3.0mm;
The thickness of galvanized roof frame beam is 3.0mm;
The thickness of galvanized column is 3.0mm; Zinc content: 80g.Structural M12*40 high strength bolt Spraying process Galvanized process, polyester finish Wall panel Glass wool core
materialThe thickness of color steel composite plate is 75mm, the thickness of color steel plate is 0. 45, PE coating, white color, orange peel pattern on the outer plate and flat inner plate;
No side steel strip S-shaped socket, no cold bridge for splicing;
Glass wool unit weight 70kg/m³The combustion performance is class a non combustible;Roof system Roof waterproof Roof tile: color steel veneer bite thickness 0.5mm, 360° bite Insulation layer Glass wool roll felt, thickness 100mm, unit weight 14kg/m³, The combustion performance is class a non combustible.
(double layer layout)Damp proof course PE resin film Decorative layer Yx28-277-831 strip ceiling board, O.Smm, white gray Ground system Bottom panel 910 type white corrugated board, 0.3mm thick Thermal insulation material Glass wool roll felt, thickness 100mm, volume weight 14kg / m³, The combustion performance is class a non combustible Damp proof course PE resin film Structural plate Cement fiber board, 18mm thick Ground treatment PVC environment-friendly plastic floor, 2.0mm thick, blue door Entrance doors Steel door, size≥w845*h2035, stainless steel door lock window Outer window Size: w1120*H1100 (two sides) decorate Interior decorative Color steel profiled corner piece, thickness O.5mm, color Xinyu white electrical system 3C/CE/CL/SAA Standard.with distribution box, ligh饵， switch, sockets, etc. Optional facilities Outdoor single
running stairs4650*1100mm, checkered steel plate anti-skid step, square tube steel railing Outdoor walkway
board2990*1050mm, steel cantilever beam, checkered steel plate, anti-skid walkway plate, square tube steel railing Outdoor canopy 2990*1180mm, steel cantilever beam, 50mm color steel composite plate canopy panel Indoor corridor box Size 5800*1800*2896mm Model for choose:
