40ft Expandable Container House

Expandable Modular Container House is more and more popular among our customers.
  • Product Detail
  • VR link

    Expandable Container House



    Expandable Container House

    Expandable Modular Container House is more and more popular among our customers.

    The use of containers as a building material has grown in popularity of the past several years due to their inherent strength, wide availability, and relatively low expense. We have also started to see people build homes with containers because they are seen as more eco-friendly than traditional building materials such as brick and cement.

    They have been retro-fitted with functional container house accessories. These container home units are transportable and comfortable to live in temporarily or permanently.

    They are fitted with power and lighting and can be accessorised to suit your requirements.Container houses are becoming increasing popular in this new age of sustainable living , as our container houses are constructed from recycled shipping containers.

    Expandable Container House

    Expandable Container House

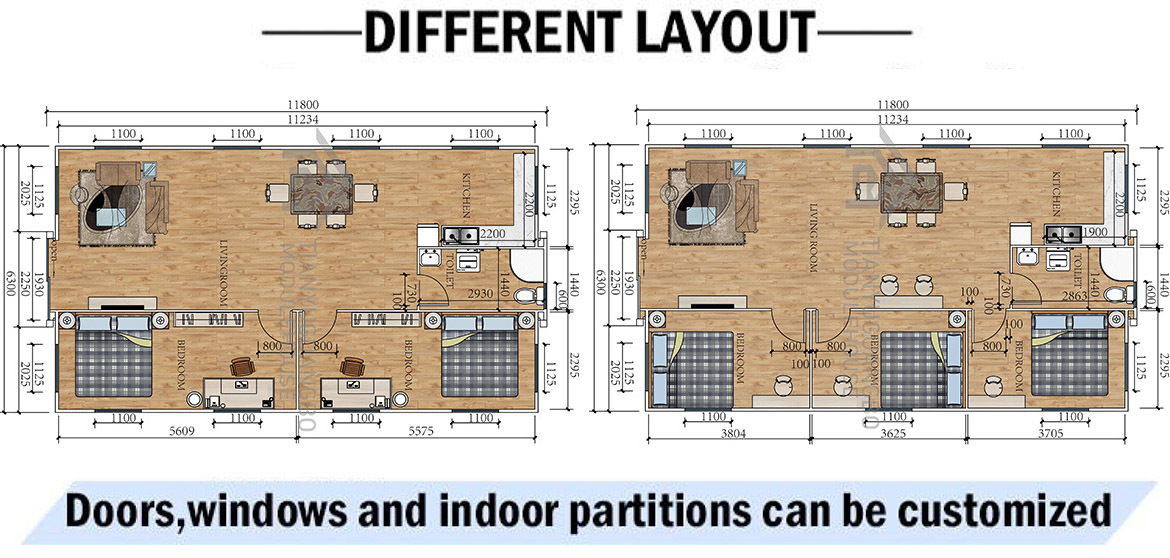

    40FT size expandable container house

    (1) size: 11800*2260* 2530mm / 11800*6300*2530mm

    (2)The color can be choose

    (3)The panel have eps sandwich panel, rock wool sandwich panel and Pu sandwich panel

    (4)There is ultrahigh special size

    Expandable Container House

    Option size L11800*W6300*W2530
    Close size: L11800*W2260*W2530
    Steel structure: 3mm Hot galvanized steel structure with 4 corner casts
    Wall panel: 50/75/100 mm EPS / Rock woll / PU sandwich panel
    Wall color : White, Charcoal or customized
    Roof: 3-4mm Hot galvanized steel structure with 4 corner casts
    Door:  Made of steel / aluminum frame, dimension
    Window: Made of PVC / aluminum fame.
    Floor : Fireproof panel 15mm PVC grain board
    Bathroom : Custom requirement
    Floor load : 250 kg/sqm
    Electricity: 3C/CE/CL/SAA Standard,with distribution box, lights, switch, sockets, etc.
    Wind rasistance : 11 level
    Earthquake resistance : 8 level

    Top waterproof

    The top of the middle material is galvanized steel plate, and the bilateral materials are glass fiber reinforcement, and then the overall suppression molding technology is used. The surface is seamless. It does not need to use adhesive tape, flat and beautiful, so that the possibility of water leakage at the top of the entire house.

    Wall waterproof

    The width of the rainy shelter at the top of the product is 18 cm, which solves the problem of the roof water directly along the wall and the water intake in the house.

    Waterproof at the bottom

    In the same industry also use rubber strips to fill the bottom gap, our company has developed. The bottom of the wall board water tank integrated waterproof structural parts, the bottom of the water tank is 3 cm higher than the bottom beam, to eliminate the rubber strip hardening for a long time and the bottom of the water, water leakage and other problems.

    Hidden nail Skirting line

    The Skirting lines around the top and the bottom of the house are all PVC angle lines with hidden nails. There is no nail on the external surface, which is beautiful and generous.

    Large expansion space

    The interior size is 5 cm longer and 10 cm wide than similar products, which effectively increases the indoor space.

    Thick floor

    18mm of the floor, 2.0 mm of plastic flooring, and a total thickness of 20.0 mm, far exceeding the thickness of similar products on the market. Strong pressure -resistant ability, long -term stamping will not deform and sink, and the support is good.

    Large -sized windows

    The size of the window is 1.10x1.125 meters, far exceeding the size of similar product windows (0.95x1.10 meters) on the market, and the window frames before the factory are installed intact, and the sealing glue is well played. Effectively avoid problems such as gaps, unevenness and other problems on site installation. Save time and labor. The large window, the window is clear, making the indoor light brighter, effectively improving the comfort of customers' living

    Internal ceiling height is 2.4m

    Our company broke through the technical difficulties in the industry, and independently developed and expanded the high energy in the house to achieve 2.4 meters. There is no need to use an open container or frame container transportation during transportation, which greatly saves customers' freight. At the same time, it also meets the standard requirements of the local council about the minimum of 2.4 meters in the building's requirements.
